Keys - Flexi-Sys
for cam latches & locks

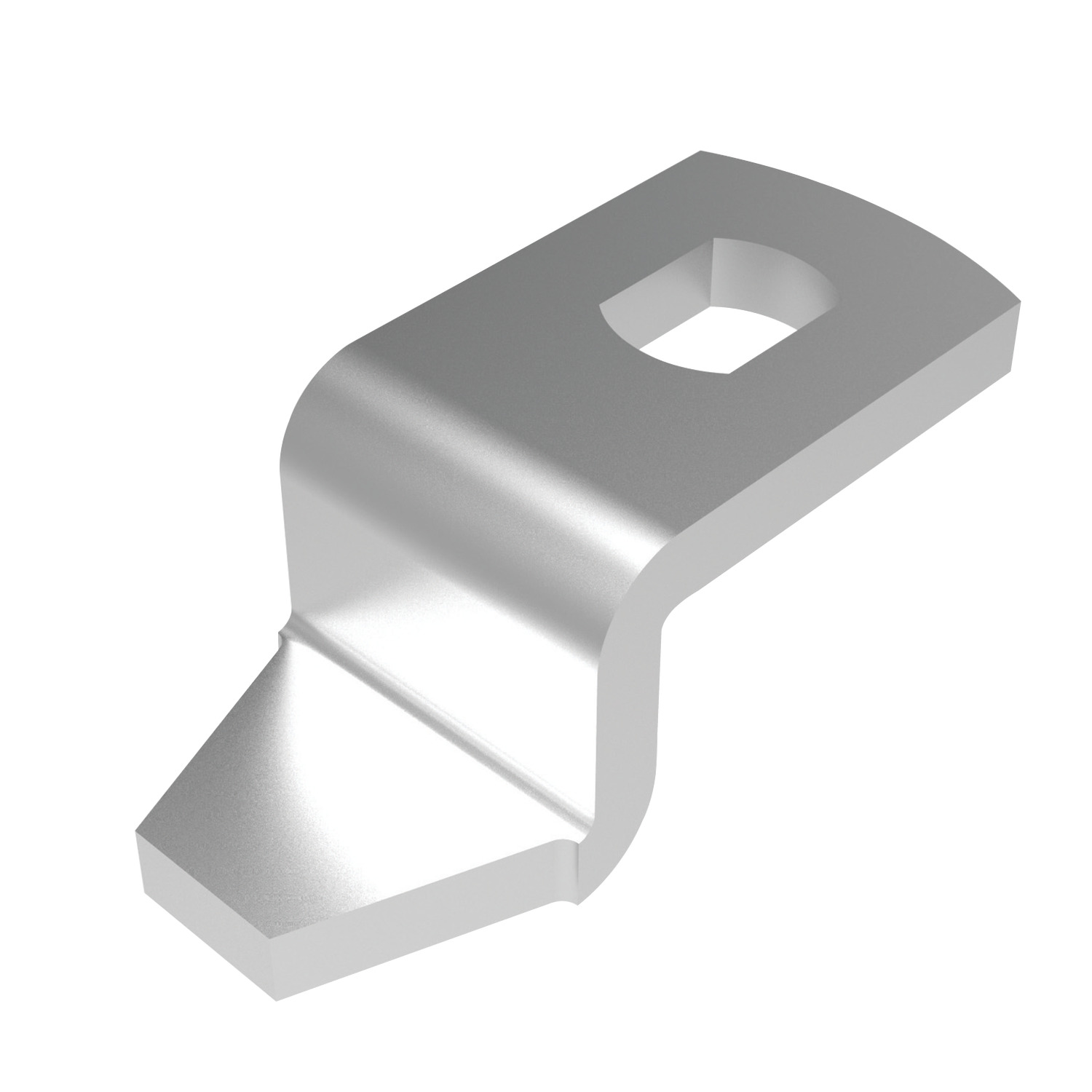

CC0030 Single Point Cams - Steel
for adjustable grip compression cam latches, material: Steel
Alternative products you may wish to consider
ch
0
cl
33
Where lh = 32
32
£ 1.02 per unit (click for quantity discounts)
ch
14
cl
33
Where lh = 32
46
£ 1.02 per unit (click for quantity discounts)
ch
27
cl
33
Where lh = 32
59
£ 1.02 per unit (click for quantity discounts)
ch
cl
Where lh = 32
| Price & Availability | Article | ch | cl | Where lh = 32 | |||||||||||||||||||||
| CC0030.M0300 | 0 | 33 | 32 | ||||||||||||||||||||||
£ 1.02 per unit (click for quantity discounts) Ready to despatch 978 Need more? Please call us.
ch 0 cl 33 Where lh = 32 32 | |||||||||||||||||||||||||
| CC0030.M0314 | 14 | 33 | 46 | ||||||||||||||||||||||
£ 1.02 per unit (click for quantity discounts) Ready to despatch 972 Need more? Please call us.
ch 14 cl 33 Where lh = 32 46 | |||||||||||||||||||||||||
| CC0030.M0327 | 27 | 33 | 59 | ||||||||||||||||||||||
£ 1.02 per unit (click for quantity discounts) Ready to despatch 13 Need more? Please call us.
ch 27 cl 33 Where lh = 32 59 | |||||||||||||||||||||||||
Technical & Application
Material
Steel, zinc plated.
Technical Notes
Use formula to calculate ch (required cam off-set), and select from product table below;
ch = h - lh where;
ch = required cam off-set/height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see individual latch/lock product table).

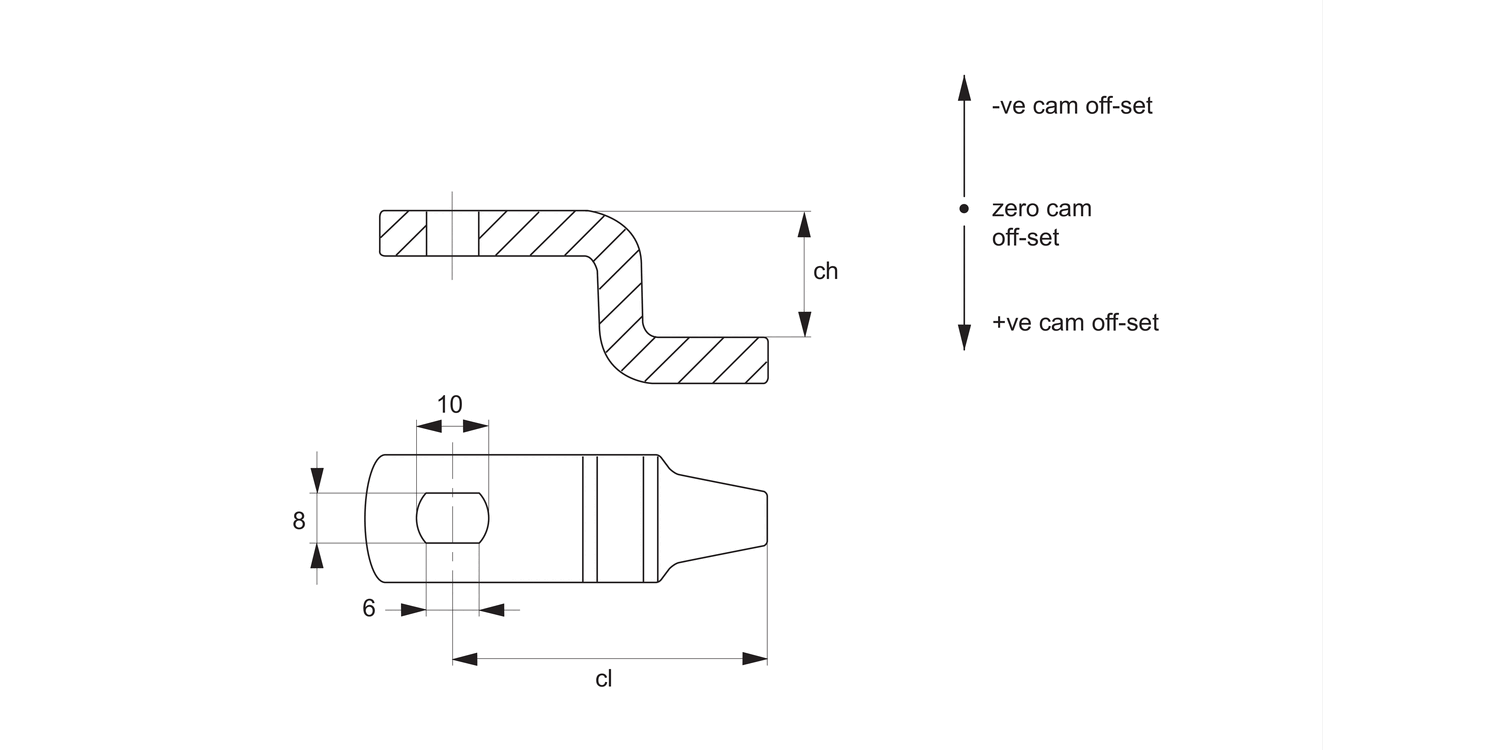

Refer to installation drawing below.
Important Notes
Suitable for adjustable grip compression cam latches CC0802, CC0810, , .
See cam selection chart for specific latch/lock suitability.
Installation hole is rectangular 6mmx4mm.
Please note due to design of the single point cam, it is not possible to use +ve offset cam in reverse/upside down as it results in a clash with the body of the cam latch- making it inoperable.
