Swing Bolts
Brass

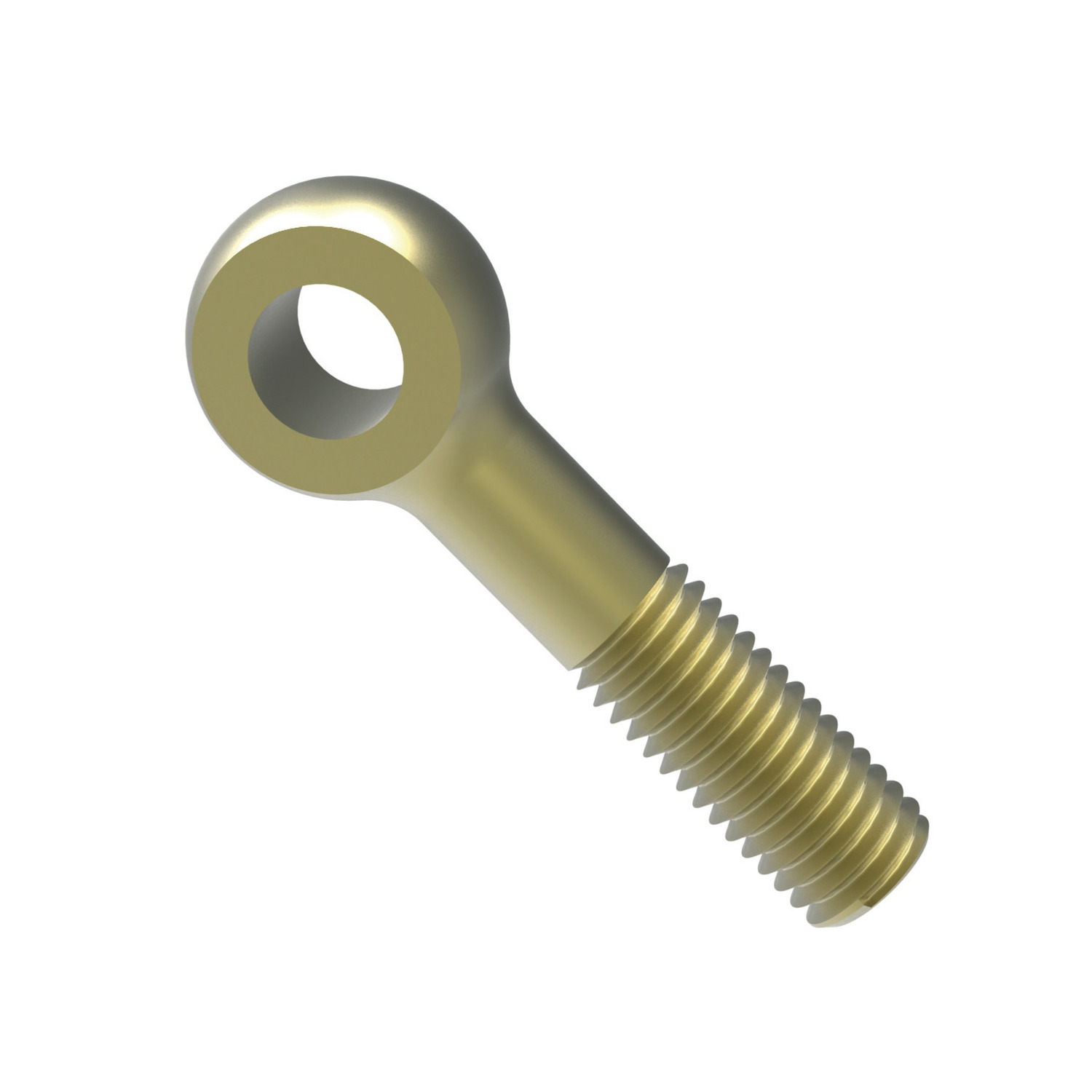

B1084.B0 Swing Bolts
Brass, material: Brass
Alternative products you may wish to consider
£ 6.17 per unit (click for quantity discounts)
£ 7.32 per unit (click for quantity discounts)
£ 8.45 per unit (click for quantity discounts)
£ 7.32 per unit (click for quantity discounts)
£ 8.76 per unit (click for quantity discounts)
£ 9.38 per unit (click for quantity discounts)
£ 8.14 per unit (click for quantity discounts)
£ 11.59 per unit (click for quantity discounts)
£ 13.09 per unit (click for quantity discounts)
£ 10.02 per unit (click for quantity discounts)
£ 10.62 per unit (click for quantity discounts)
£ 13.91 per unit (click for quantity discounts)
£ 17.67 per unit (click for quantity discounts)
£ 16.12 per unit (click for quantity discounts)
£ 13.41 per unit (click for quantity discounts)
£ 14.84 per unit (click for quantity discounts)
£ 15.24 per unit (click for quantity discounts)
£ 10.29 per unit (click for quantity discounts)
£ 20.79 per unit (click for quantity discounts)
£ 27.14 per unit (click for quantity discounts)
£ 25.37 per unit (click for quantity discounts)
£ 27.21 per unit (click for quantity discounts)
£ 26.45 per unit (click for quantity discounts)
£ 37.11 per unit (click for quantity discounts)
£ 50.04 per unit (click for quantity discounts)
£ 39.83 per unit (click for quantity discounts)
£ 66.53 per unit (click for quantity discounts)
£ 85.17 per unit (click for quantity discounts)

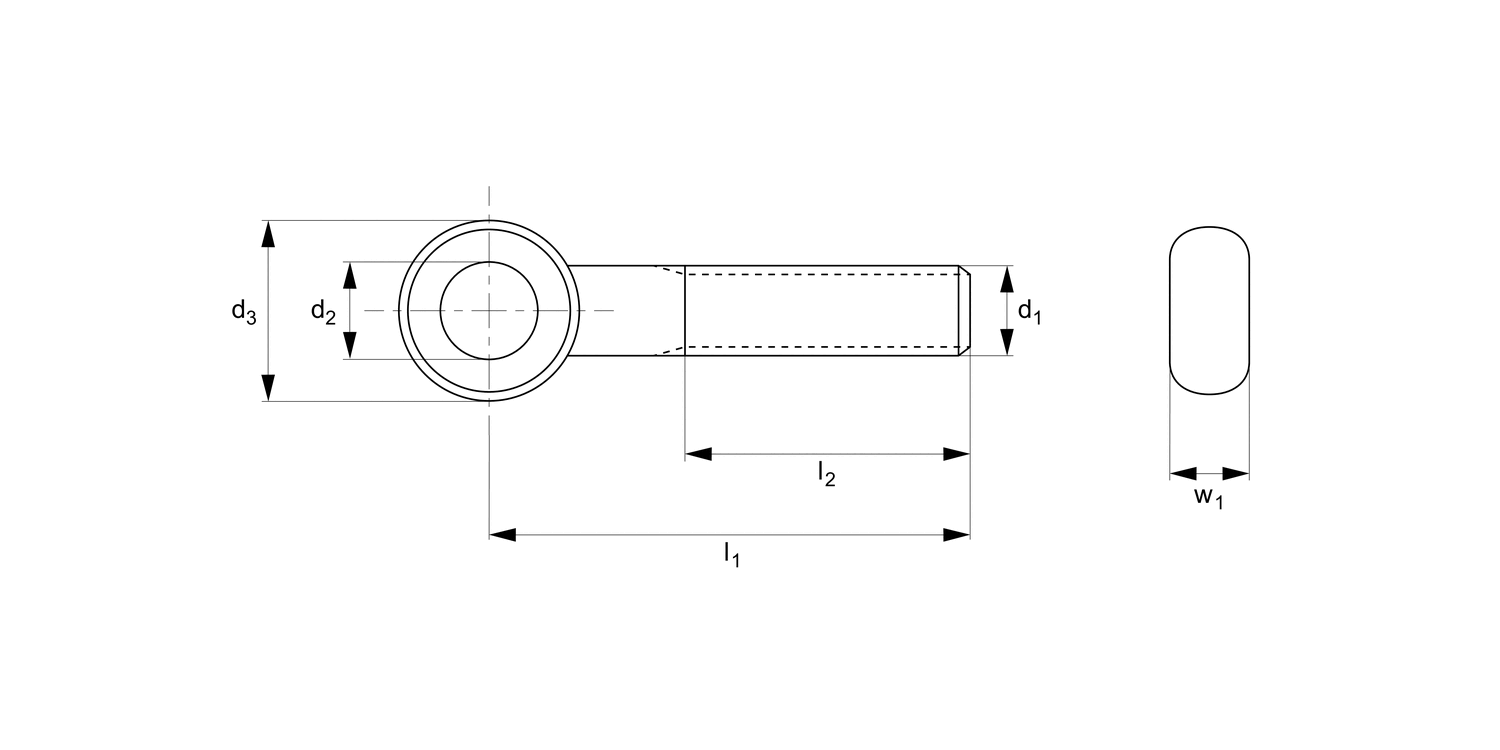

d1
tol. H9
l1
d2
tol. H7
d3
l2
w1
max.
| Price & Availability | Article | d1 tol. H9 | l1 | d2 tol. H7 | d3 | l2 | w1 max. | |||||||||||||||
| B1084.060030B000 | M6 | 30 | 6 | 14 | 18 | 7 | ||||||||||||||||
£ 6.17 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M6 l1 30 d2
tol. H7 6 d3 14 l2 18 w1
max. 7 | ||||||||||||||||||||||
| B1084.060040B000 | M6 | 40 | 6 | 14 | 18 | 7 | ||||||||||||||||
£ 7.32 per unit (click for quantity discounts) Ready to despatch 20 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M6 l1 40 d2
tol. H7 6 d3 14 l2 18 w1
max. 7 | ||||||||||||||||||||||
| B1084.060050B000 | M6 | 50 | 6 | 14 | 18 | 7 | ||||||||||||||||
£ 8.45 per unit (click for quantity discounts) Ready to despatch 86 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M6 l1 50 d2
tol. H7 6 d3 14 l2 18 w1
max. 7 | ||||||||||||||||||||||
| B1084.080030B000 | M8 | 30 | 8 | 18 | 22 | 9 | ||||||||||||||||
£ 7.32 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M8 l1 30 d2
tol. H7 8 d3 18 l2 22 w1
max. 9 | ||||||||||||||||||||||
| B1084.080040B000 | M8 | 40 | 8 | 18 | 22 | 9 | ||||||||||||||||
£ 8.76 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M8 l1 40 d2
tol. H7 8 d3 18 l2 22 w1
max. 9 | ||||||||||||||||||||||
| B1084.080050B000 | M8 | 50 | 8 | 18 | 22 | 9 | ||||||||||||||||
£ 9.38 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M8 l1 50 d2
tol. H7 8 d3 18 l2 22 w1
max. 9 | ||||||||||||||||||||||
| B1084.080060B000 | M8 | 60 | 8 | 18 | 22 | 9 | ||||||||||||||||
£ 8.14 per unit (click for quantity discounts) Ready to despatch 21 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M8 l1 60 d2
tol. H7 8 d3 18 l2 22 w1
max. 9 | ||||||||||||||||||||||
| B1084.080080B000 | M8 | 80 | 8 | 18 | 22 | 9 | ||||||||||||||||
£ 11.59 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M8 l1 80 d2
tol. H7 8 d3 18 l2 22 w1
max. 9 | ||||||||||||||||||||||
| B1084.080100B000 | M8 | 100 | 8 | 18 | 22 | 9 | ||||||||||||||||
£ 13.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M8 l1 100 d2
tol. H7 8 d3 18 l2 22 w1
max. 9 | ||||||||||||||||||||||
| B1084.100050B000 | M10 | 50 | 10 | 20 | 26 | 12 | ||||||||||||||||
£ 10.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M10 l1 50 d2
tol. H7 10 d3 20 l2 26 w1
max. 12 | ||||||||||||||||||||||
| B1084.100060B000 | M10 | 60 | 10 | 20 | 26 | 12 | ||||||||||||||||
£ 10.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M10 l1 60 d2
tol. H7 10 d3 20 l2 26 w1
max. 12 | ||||||||||||||||||||||
| B1084.100080B000 | M10 | 80 | 10 | 20 | 26 | 12 | ||||||||||||||||
£ 13.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M10 l1 80 d2
tol. H7 10 d3 20 l2 26 w1
max. 12 | ||||||||||||||||||||||
| B1084.100120B000 | M10 | 100 | 10 | 20 | 26 | 12 | ||||||||||||||||
£ 17.67 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M10 l1 100 d2
tol. H7 10 d3 20 l2 26 w1
max. 12 | ||||||||||||||||||||||
| B1084.100100B000 | M10 | 120 | 10 | 20 | 26 | 12 | ||||||||||||||||
£ 16.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M10 l1 120 d2
tol. H7 10 d3 20 l2 26 w1
max. 12 | ||||||||||||||||||||||
| B1084.120040B000 | M12 | 40 | 12 | 25 | 30 | 14 | ||||||||||||||||
£ 13.41 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M12 l1 40 d2
tol. H7 12 d3 25 l2 30 w1
max. 14 | ||||||||||||||||||||||
| B1084.120050B000 | M12 | 50 | 12 | 25 | 30 | 14 | ||||||||||||||||
£ 14.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M12 l1 50 d2
tol. H7 12 d3 25 l2 30 w1
max. 14 | ||||||||||||||||||||||
| B1084.120060B000 | M12 | 60 | 12 | 25 | 30 | 14 | ||||||||||||||||
£ 15.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M12 l1 60 d2
tol. H7 12 d3 25 l2 30 w1
max. 14 | ||||||||||||||||||||||
| B1084.120080B000 | M12 | 80 | 12 | 25 | 30 | 14 | ||||||||||||||||
£ 10.29 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M12 l1 80 d2
tol. H7 12 d3 25 l2 30 w1
max. 14 | ||||||||||||||||||||||
| B1084.120100B000 | M12 | 100 | 12 | 25 | 30 | 14 | ||||||||||||||||
£ 20.79 per unit (click for quantity discounts) Ready to despatch 68 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M12 l1 100 d2
tol. H7 12 d3 25 l2 30 w1
max. 14 | ||||||||||||||||||||||
| B1084.120120B000 | M12 | 120 | 12 | 25 | 30 | 14 | ||||||||||||||||
£ 27.14 per unit (click for quantity discounts) Ready to despatch 46 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M12 l1 120 d2
tol. H7 12 d3 25 l2 30 w1
max. 14 | ||||||||||||||||||||||
| B1084.160060B000 | M16 | 60 | 16 | 32 | 38 | 17 | ||||||||||||||||
£ 25.37 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M16 l1 60 d2
tol. H7 16 d3 32 l2 38 w1
max. 17 | ||||||||||||||||||||||
| B1084.160080B000 | M16 | 80 | 16 | 32 | 38 | 17 | ||||||||||||||||
£ 27.21 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M16 l1 80 d2
tol. H7 16 d3 32 l2 38 w1
max. 17 | ||||||||||||||||||||||
| B1084.160100B000 | M16 | 100 | 16 | 32 | 38 | 17 | ||||||||||||||||
£ 26.45 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M16 l1 100 d2
tol. H7 16 d3 32 l2 38 w1
max. 17 | ||||||||||||||||||||||
| B1084.160120B000 | M16 | 120 | 16 | 32 | 38 | 17 | ||||||||||||||||
£ 37.11 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M16 l1 120 d2
tol. H7 16 d3 32 l2 38 w1
max. 17 | ||||||||||||||||||||||
| B1084.200100B000 | M20 | 100 | 18 | 40 | 46 | 22 | ||||||||||||||||
£ 50.04 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M20 l1 100 d2
tol. H7 18 d3 40 l2 46 w1
max. 22 | ||||||||||||||||||||||
| B1084.200120B000 | M20 | 120 | 18 | 40 | 46 | 22 | ||||||||||||||||
£ 39.83 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M20 l1 120 d2
tol. H7 18 d3 40 l2 46 w1
max. 22 | ||||||||||||||||||||||
| B1084.200140B000 | M20 | 140 | 18 | 40 | 46 | 22 | ||||||||||||||||
£ 66.53 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M20 l1 140 d2
tol. H7 18 d3 40 l2 46 w1
max. 22 | ||||||||||||||||||||||
| B1084.200160B000 | M20 | 160 | 18 | 40 | 46 | 22 | ||||||||||||||||
£ 85.17 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. H9 M20 l1 160 d2
tol. H7 18 d3 40 l2 46 w1
max. 22 | ||||||||||||||||||||||
Technical & Application
Material
Brass.
Technical Notes
To DIN 444 B.
