Swing Handles
with rod control

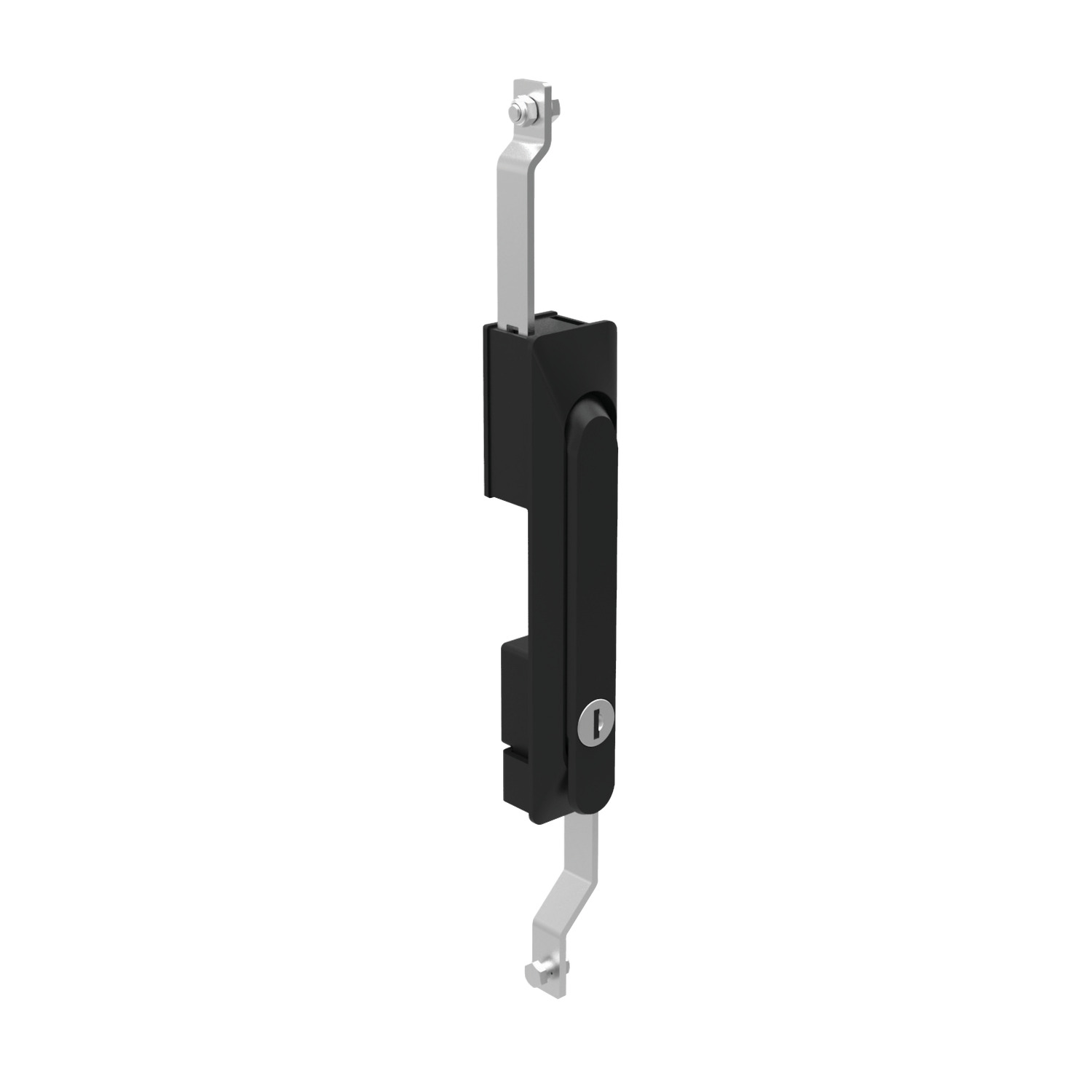

PL0520 Swing Handle - with Rod Control
standard cylinder - polyamide, material: Polyamide
Order No.
PL0520.AW0010
Finish
Black, Plastic
Latching type
2-Point
Key type
Keyed Alike

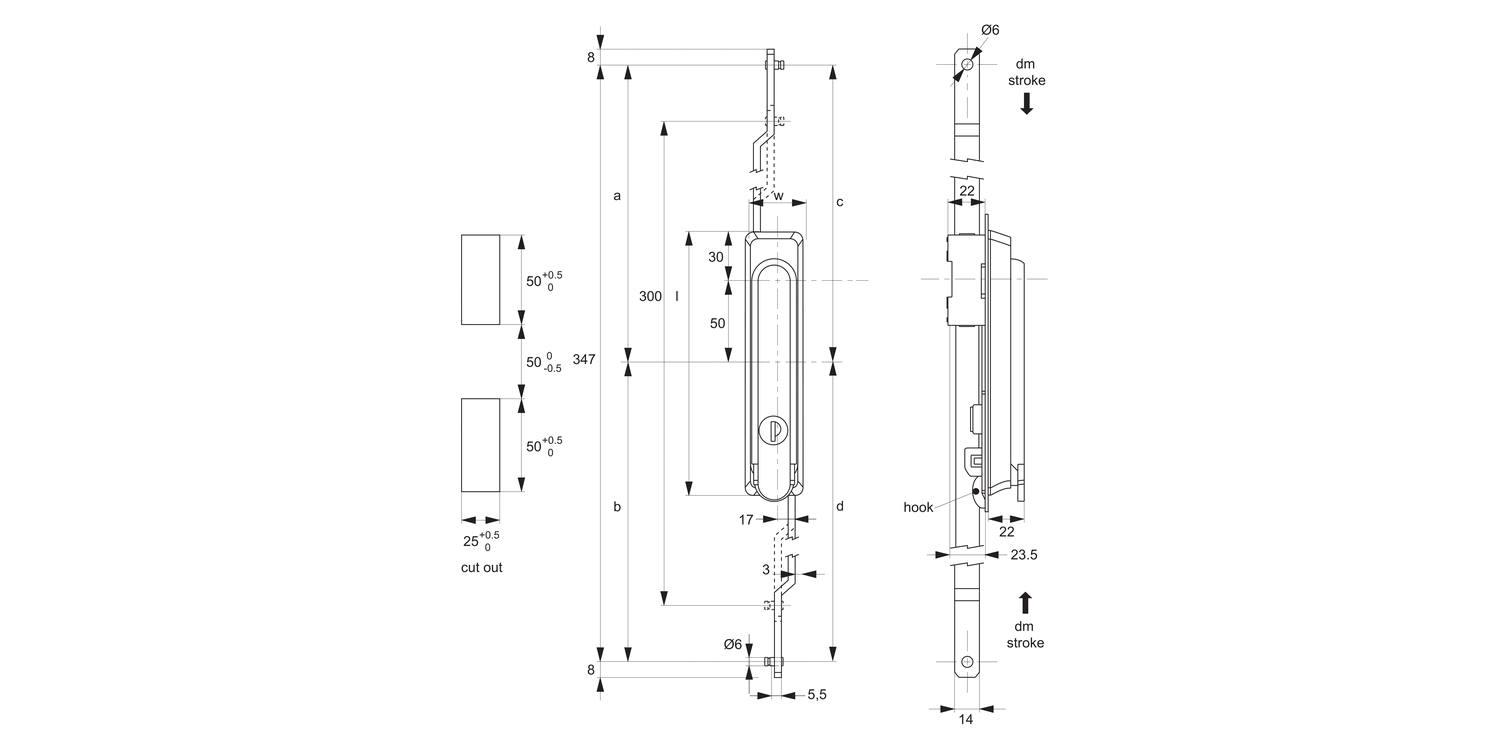

l
160
w
35
lh
22
a
123.5
b
223.5
c
173.5
d
173.5
dm stroke
135°
23.5
dm stroke
90°
16
£ 14.82 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1+ | £ 14.82 |
Technical & Application
Material
Body & Handle: polyamide (PA), black.
Cylinder lock: die cast zinc, chrome plated.
Rod Control Mechanism: die cast zinc.
Supplied with: Keys: two per lock.
Not supplied: Rods: order separately.
Technical Notes
Suitable for two point latching.
Not suitable for three point latching.
Rods & Guides: CC0340, CC0350, CC0355.
Tips
Suitable for panel thickness 1 - 2mm.
