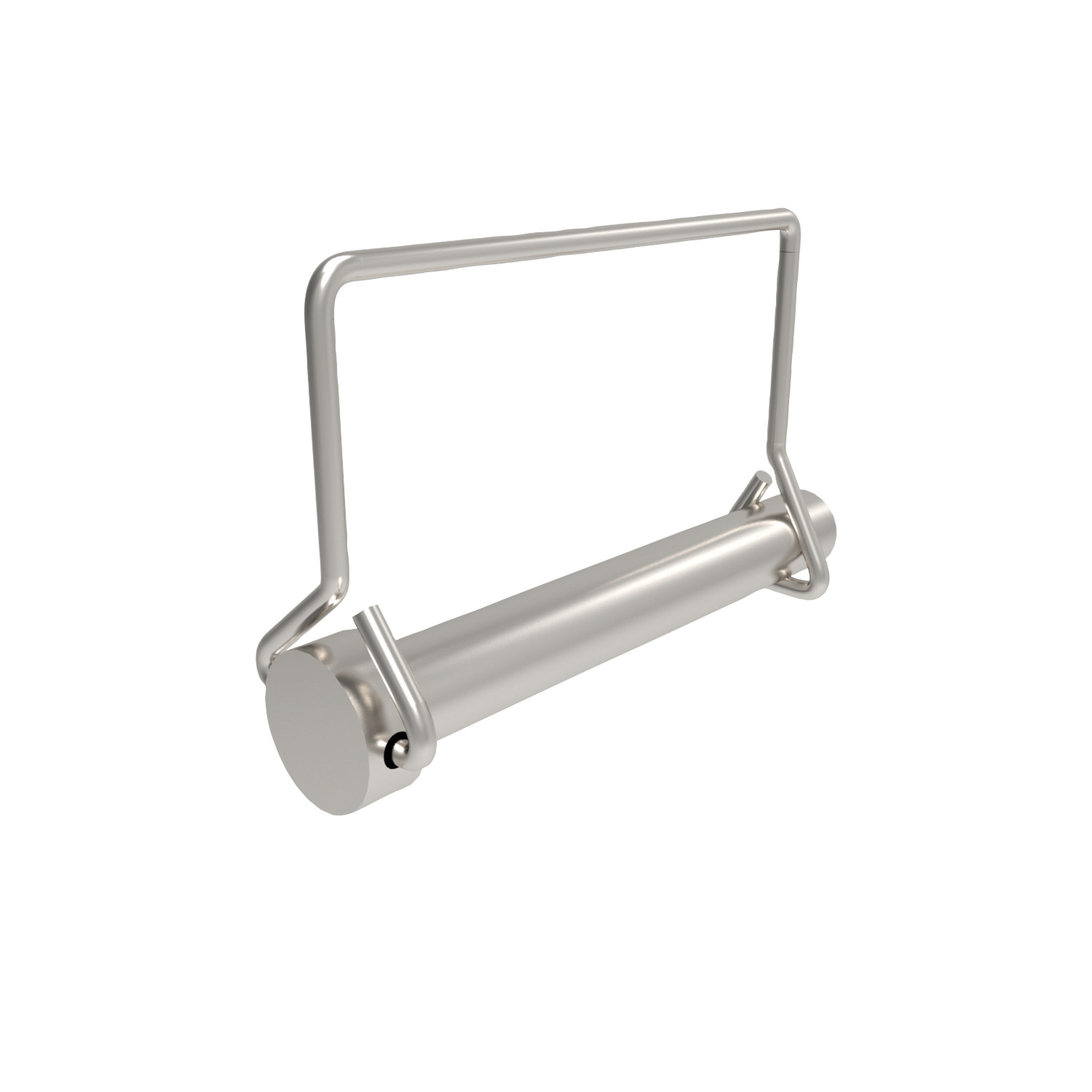

PP1706 Lock Pin - Square Wire - Single
steel
Order No.
PP1706.050-300-C

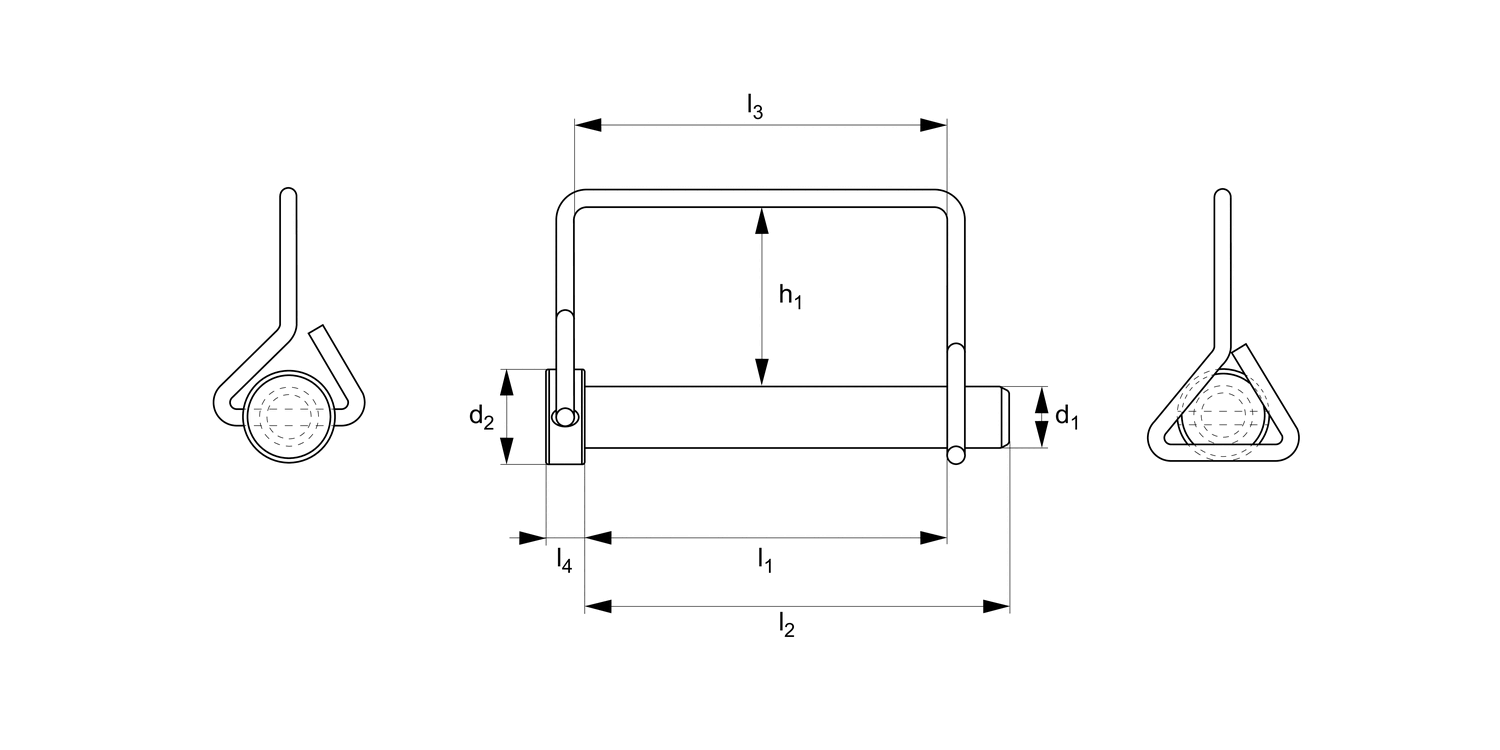

d1
12,7(1/2")
l1
78,59(3")
d2
19.05
h1
41.3
l2
88.9
l3
78.59
l4
7.94
£ 16.69 per unit (click for quantity discounts)
Ready to despatch 60
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 16.69 | 0% |
| 10-19 | £ 15.02 | 10% |
| 20-49 | £ 13.35 | 20% |
| 50-99 | £ 11.68 | 30% |
| 100+ | £ 10.01 | 40% |
Technical & Application
Material
Pin: Carbon steel, C1008-C1010, zinc plated.
Single wire loop: hard drawn spring wire.
Technical Notes
Pin and cotter in one, preventing loss of parts. Pull wire over pin to lock in place, no need for separate clevis pin and cotter. Ideal economic solution for quick release applications. Whereas part PP1700 has a double wire loop, PP1706 has just a single wire loop.
Tips
Use lanyard or retaining cable to permanently attach wire lock pin to assembly, see part nos. L to LA1224.
Also known as PTO Pins, Snapper Pins, Hitch Pins and Quick Pins.
