Quick Release Pins
What is...
Quick release pins, also known as quick-release detent pins or quick-disconnect pins, are specialized fasteners used for rapid assembly, disassembly, or adjustment of components without requiring tools like wrenches or screwdrivers.
These pins consist of a body typically made of metal (such as stainless steel) with a spring-loaded ball or plunger mechanism that locks the pin securely into place when inserted into a corresponding hole or receptacle.
Key features:
- spring-loaded mechanism allows easy insertion and removal
- tool-free operation
- variety of styles
- commonly used in aerospace, automotive, manufacturing and machinery industries, where rapid assembly, disassembly, or just ajustment of componensts is necessary
- available in a range of sizes, diameters, and lengths to acommodate different load capacities and installation requirements
They are a convenient and efficient solution for temporary fastening and adjustment tasks in various industrial and mechanical applications. They help streamline assembly processes and reduce downtime by enabling rapid component changes or adjustments without the need for specialised tools.
Detent Pins
Very economical for use in commercial and military equipment. The solid body with direct spring loaded ball ensures reliable operation. Can be used for locking telescopic tubing, securing bracket assemblies, as anchor clevis fittings, hinge pins and as replacement for cotter pins, where frequent removal is necessary.
Imperial.
Ring handle.
Grip length from 0.3" to 8".
Zinc plated carbon steel shaft.
Stainless steel, AISI 316, ball and spring.
Imperial.
Ring handle.
Grip length from 0.3" to 8".
Stainless steel, AISI 303, shaft.
Stainless steel , AISI 316, ball and spring.
Imperial.
With shoulder. Ring handle.
Grip length from 0.3" to 8".
Zinc plated carbon steel shaft.
Stainless steel, AISI 316, ball and spring.
Imperial.
Ring handle.
Grip length from 0.3" to 8".
Stainless steel, AISI 303, shaft.
Stainless steel , AISI 316, ball and spring.

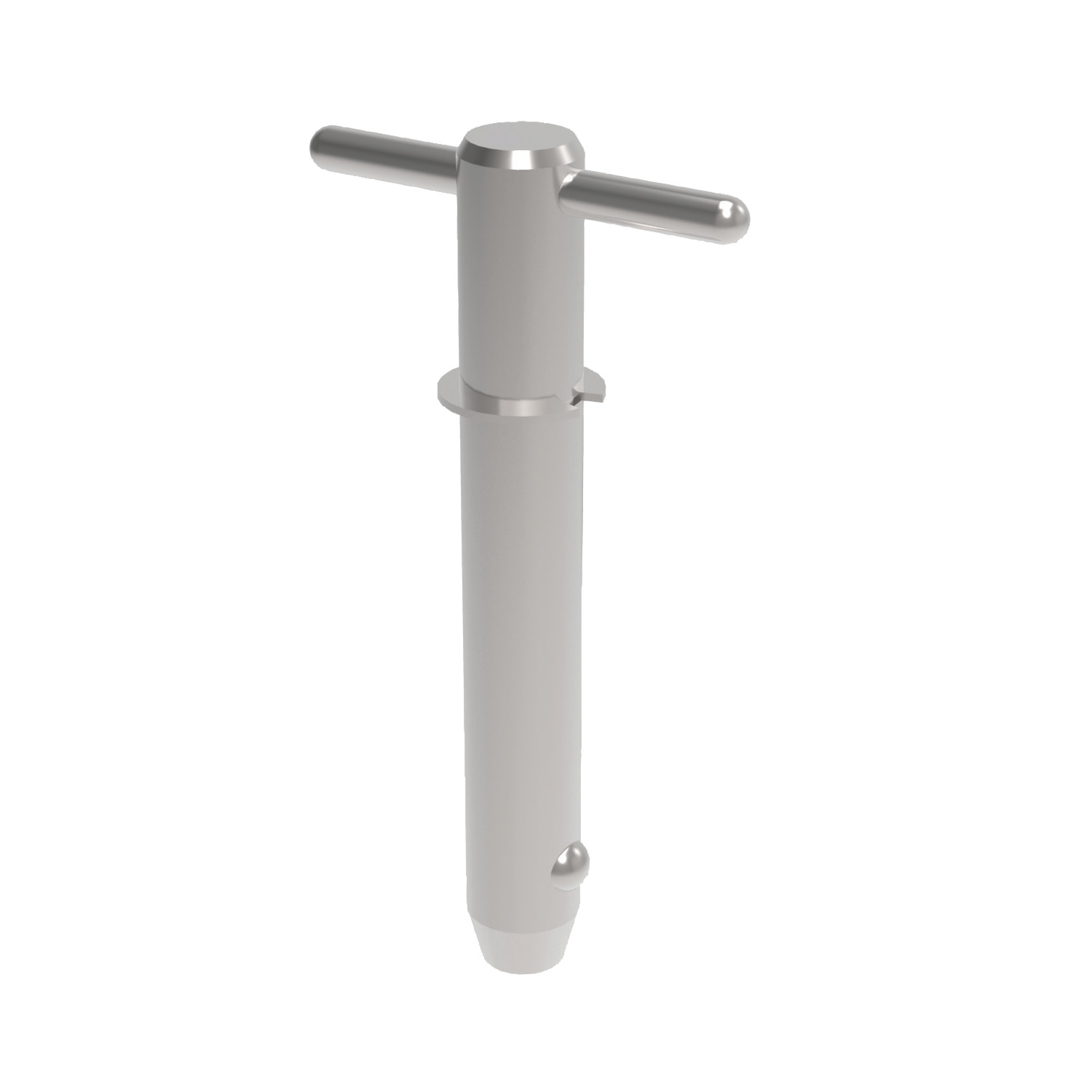

T-handle.
With shoulder.
Grip length from 0.3" to 8".
Zinc plated carbon steel shaft.
Stainless steel, AISI 316, ball and spring.
T-handle.
With shoulder.
Grip length from 0.3" to 8".
Stainless steel, AISI 303, shaft.
Stainless steel , AISI 316, ball and spring.
L-handle.
With shoulder.
Grip length from 0.3" to 8".
Zinc plated carbon steel shaft.
Stainless steel, AISI 316, ball and spring.
L-handle.
With shoulder.
Grip length from 0.3" to 8".
Stainless steel, AISI 303, shaft.
Stainless steel , AISI 316, ball and spring.
T-handle with plastic handle.
Grip length from 0.5" to 5".
Zinc plated carbon steel shaft.
Stainless steel, AISI 316, ball and spring.
T-handle with plastic handle.
Grip length from 0.5" to 5".
Stainless steel, AISI 303, shaft.
Stainless steel , AISI 316, ball and spring.
Ball handle.
Grip length from 0.5" to 5".
Zinc plated carbon steel shaft.
Stainless steel, AISI 316, ball and spring.
Ball handle.
Grip length from 0.5" to 5".
Stainless steel, AISI 303, shaft.
Stainless steel , AISI 316, ball and spring.
L-Handle Quick Release Pins
Metric
Self-locking. Metric.
Stainless steel.
Temperature resistance 30°C to +150°C.
Shearing resistance similar to DIN 50141.
Without split rings.
Self-locking. Metric. Precipitation hardened, blast finish stainless steel - offering extreme load capacity. Black aluminium handle. Temperature resistance -30°C to +150°C. Without split rings.
Zinc plated, clear chromate alloy steel. Tensile strength 1,100 N/mm² min. RoHS compliant. Anodised aluminium handle and actuator button. Temperature range -30°C to +150°C. Stainless steel internal spindle, balls and split ring.
Precipitattion hardened, passivated stainless steel pin. Tensile strength 1,300 N/mm² min. HRC 40. RoHS compliant. Anodised aluminium handle and actuator button. Stainless steel internal spindle, balls and spit ring.
Imperial
Self-locking. Metric.
Stainless steel.
Temperature resistance 30°C to +150°C.
Shearing resistance similar to DIN 50141.
Without split rings.
Self-locking. Metric. Precipitation hardened, blast finish stainless steel - offering extreme load capacity. Black aluminium handle. Temperature resistance -30°C to +150°C. Without split rings.
Zinc plated, clear chromate alloy steel. Tensile strength 1,100 N/mm² min. RoHS compliant. Anodised aluminium handle and actuator button. Temperature range -30°C to +150°C. Stainless steel internal spindle, balls and split ring.
Quick Release Pins
Self-locking. Metric. Stainless steel, AISI 303. Black aluminium handle. Grip length from 10mm to 80mm. Up to 12 diameter pin. Temperature resistance -30°C to +150°C. Shearing resistance similar to DIN 50141.
Zinc plated, clear chromate, alloy steel pin. Black anodised aluminium handle. Tensile strength 1,100 N/mm² min. RoHS compliant. Grip length from 10mm to 100mm. Temperature range -30°C to +150°C. Supplied with stainless split ring.
Cadmium plated alloy steel pin.
Tensile strength 1,100 N/mm² min. Non-RoHS compliant. Anodised aluminium handle and actuator button. Temperature range -30°C to +150°C. Supplied with stainless split ring.
Metric. Self-locking. Single acting. Precipitation hardened, blast finish, stainless steel. Offering extreme load capacity. Black aluminium handle. Stainless steel ball & spring. Temperature resistance -30°C to +150°C. Shearing resistance similar to DIN 50141.
Self-locking. Stainless steel, 1.4305 pin and 1.3541 ball. Stainless steel spring and handle. Handle shape protects against actuation of ball lock pin. Temperature resistant up to 250°C. Shearing resistance similar to DIN 50141.
Zinc plated, clear chromate, alloy steel pin.
Tensile strength 1,100 N/mm² min. Non-RoHS compliant. Anodised aluminium handle and actuator button. Temperature range -30°C to +150°C. Supplied with stainless split ring.
Passivated stainless steel , AISI 303 or AISI 304 pin. Tensile strength 500 N/mm² min. RoHS compliant. Passivated stainless AISI 303 handle and actuator button. Temperature range -30°C to +150°C. Supplied with stainless split ring.
Metric. Self-locking. Ergo handle. Stainless steel, AISI 630, pin. Thermoplastic PA 6 handle. Available in grey/orange, grey/blue or grey/grey. Temperature resistance -30°C to +80°C. Grip length between 10mm and 120mm. Shearing resistance similar to DIN 50141.
Metric. Self-locking. Ergo handle. Stainless steel, AISI 630, pin. Thermoplastic PA 6 handle. Available in grey/orange, grey/blue or grey/grey. Temperature resistance -30°C to +80°C. Grip length between 10mm and 120mm. Shearing resistance similar to DIN 50141.
T-Handle Quick Release Pins
Metric. Self-locking. Percipitation hardened, blast finish stainless steel, AISI 630. Offering extreme load capacity. Anodised aluminium handle and actuator button. Grip length from 10mm to 80mm. Temperature range -30°C to +150°C. Shearing resistance similar to DIN 50141.
Percipitation hardened, passivated stainless steel, AISI 630. Tensile strength 1,300 N/mm² min. HRC 40. RoHS compliant. Anodised aluminium handle and actuator button. Grip length from 10mm to 100mm. Temperature range -30°C to +150°C. Supplied with stainless split ring.
Cadmium plated, alloy steel, 4130. Tensile strength 1,100 N/mm² min. Non-RoHS compliant. Anodised aluminium handle and actuator button. Grip length from 0.5mm to 6mm. Temperature range -30°C to +150°C. Supplied with stainless split ring.
Passivated stainless steel, AISI 304 or AISI 303. Tensile strength 500 N/mm² min. RoHS compliant. Anodised aluminium handle and actuator button. Grip length from 0.5mm to 6mm. Temperature range -30°C to +150°C. Supplied with stainless split ring.
Percipitation hardened, passivated stainless steel, AISI 630. Tensile strength 1,300 N/mm² min. HRC 40. RoHS compliant. Anodised aluminium handle and actuator button . Grip length from 0.5mm to 6mm. Temperature range -30°C to +150°C. Supplied with stainless split ring.
